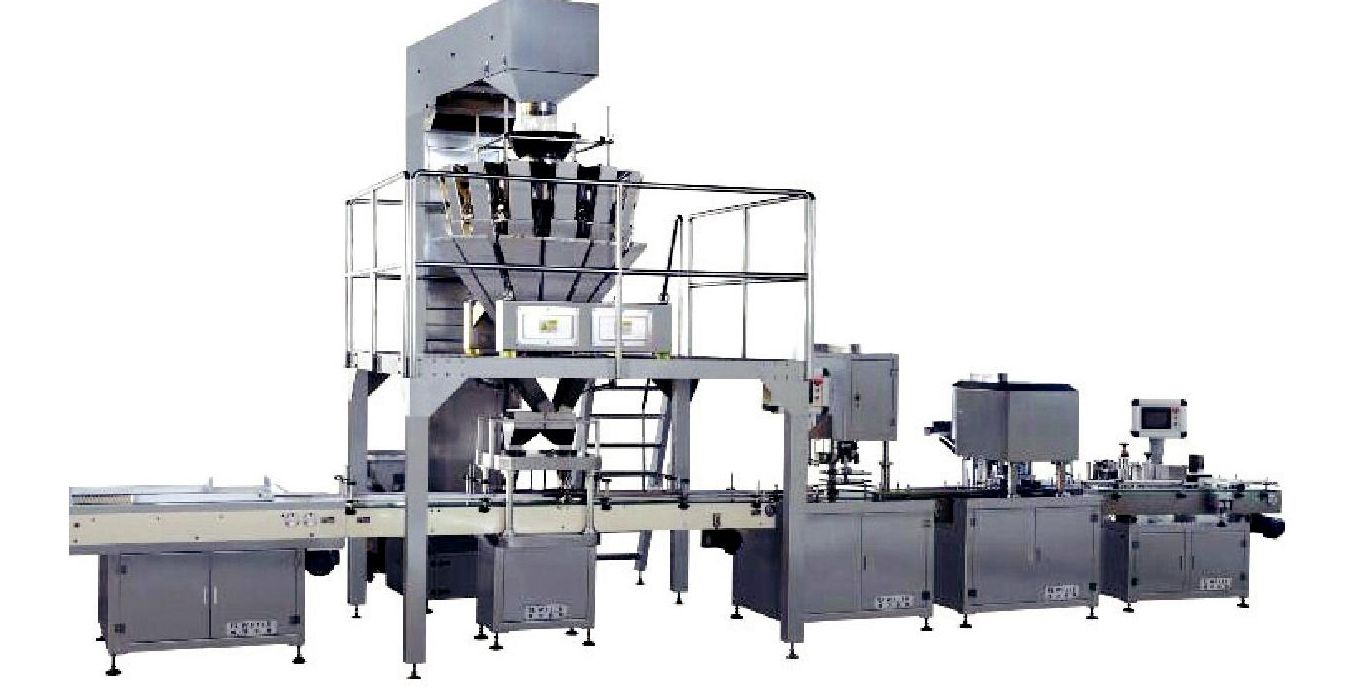

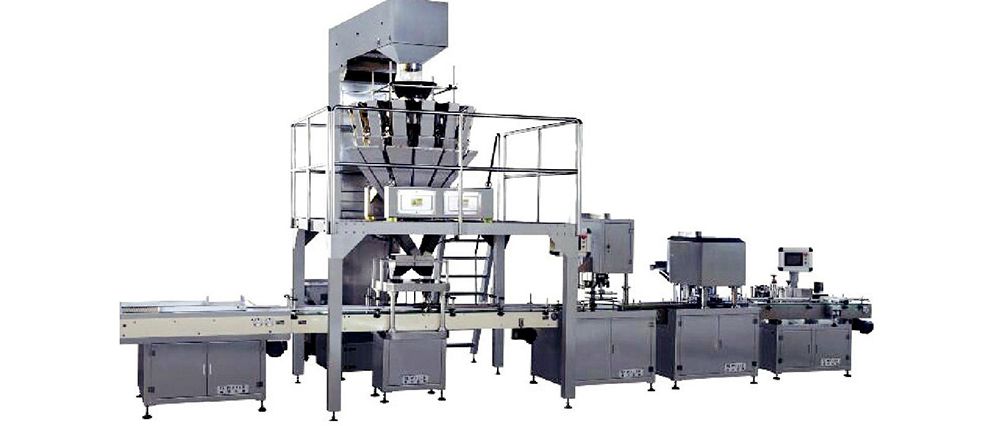

Granule Filling Line

Inline granule filling equipment and packaging machinery

Our granule filling and packaging line is a highly versatile automatic system designed for efficiently handling dry, non-dusting, and non-sticky granules, including nuts, sugar, and cakes. It offers dual functionality, allowing for packaging by both count and weight. This system can either perform the entire packaging process independently or be integrated into a dosing and packaging processing line, adhering to Good Manufacturing Practices (GMP) standards. Its wide applicability spans various industries, such as food, pharmaceuticals, chemicals, additives, and more, making it a comprehensive solution for granule packaging needs.

Granule Filling Line
  • Packing speed:
    30-65bags/min
  • Filling range:
    10-5000g
  • Filling speed:
    High speed: 30-55bpm
Request a Quote
Applications
Applications
  • Packing materials: Suitable for PET containers, glass bottles, tinplate containers, and more.
  • Applicable fillings: Designed for a variety of contents including nuts, grains, and candied fruit granules, with customizable options available.
  • Industries served: A versatile solution for the food, pharmaceutical, chemical, and additives sectors, among others.
Configurations of Filling Line

The filling line can be configured flexibly according to the specific properties of the products and your parameter preferences.

Workflow

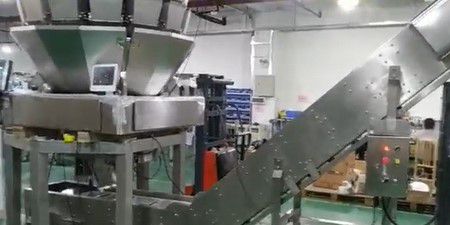

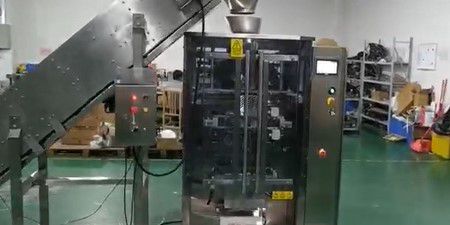

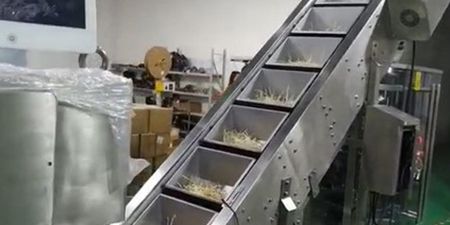

  • A vibratory feed bin---Auto feeding via vibratory feeder---Material lifting via a lifter---Automatic weighing---Automatic filling---Conveyor system transporting filled containers---Delivery of qualified products for manual encasement
  • The packaging line can be configured flexibly according to the specific properties of the products and your parameter preferences.
  • Applications
  • Applications
  • Applications
Specifications
Packing speed 30-65bags/min
Filling range 10-5000g
Bag size (L×W) 50-320mm×60-200mm
Accuracy ±0.2-0.5%
Compressed air 0.6Mpa, 0.65m³/min
Max. outer diameter of packaging material Ø400mm
Inner diameter of paper core Ø75mm
Machine weight 800kg
Power supply 380V, 50Hz, 7.5kW
Dimensions (L×W×H) 3200×3500×3880mm
Bag types Back seal bag, 4 side seal bag, gusseted bag, stand up pouch, die cut handle bag
Filling speed Low speed: 5-10bpm
Medium speed: 15-25bpm
High speed: 30-55bpm
You Might Also Be Interested In

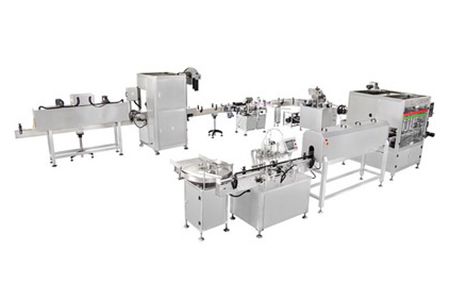

  • Liquid Filling Line
    Liquid Filling Line

    Our liquid filling line stands as an automatic system that offers a comprehensive solution for the filling and packaging of a wide array of liquids.

    Filling speed: 200-2400bph
    Filling accuracy: ≦±1﹪
    Filling heads: 2/4/6/8 heads (customizable)

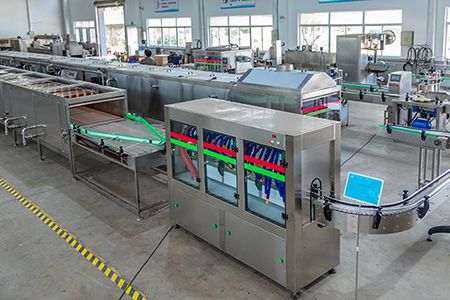

  • Sauce Filling Line
    Sauce Filling Line

    The packaging line is primarily used for the filling and packaging of sauce. It can be equipped with different filling machines to match the specific viscosity and packaging requirements of each product. With customizable designs, it can be perfectly tailored to suit your production requirements and parameter preferences.

    Filling speed: 200-2400bph
    Filling accuracy: ≦±1﹪
    Filling heads: 2/4/6/8 heads (customizable)

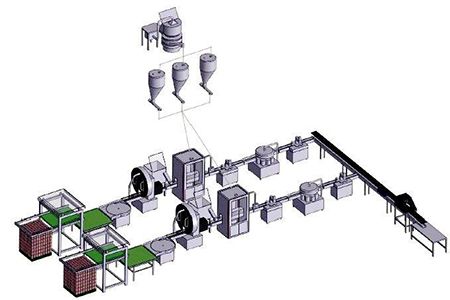

  • Powder Filling Line
