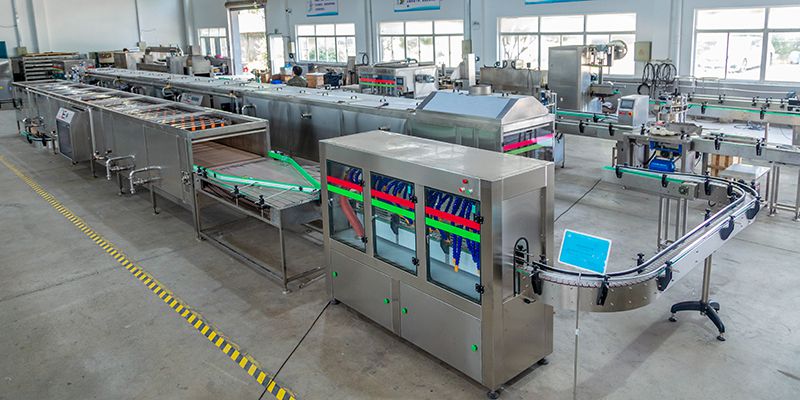

Sauce Filling Line

Inline viscous liquid filling equipment and packaging machinery

The packaging line is primarily used for the filling and packaging of sauce. It can be equipped with different filling machines to match the specific viscosity and packaging requirements of each product. With customizable designs, it can be perfectly tailored to suit your production requirements and parameter preferences.

We can supply custom sauce filling line that is applicable to a wide range of viscous liquid across pharmaceutical, chemical, food and beverage, and other industries.

Sauce Filling Line
  • Filling speed:
    200-2400bph
  • Filling accuracy:
    ≦±1﹪
  • Filling heads:
    2/4/6/8 heads (customizable)
Request a Quote
Applications

Both common sauces such as chili sauce, ketchup, peanut butter and special ones like beef paste.

  • Applications
  • Applications
  • Applications
  • Applications
Configurations of Filling Line

For bottle unscrambling, washing, drying, filling, closing, sleeving, labeling and other tasks.

Features
  • Only 3 to 5 independent operating steps are required per line, enhancing efficiency by 2-3 times per minute.
  • Built with durable 304 and 316 stainless steel for extended longevity.

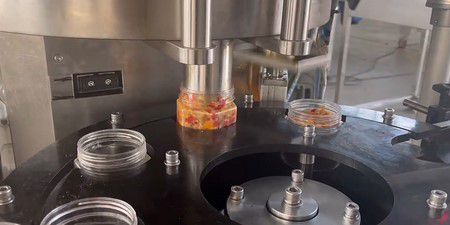

  • Vacuum screw capping machine included for longer shelf life and better product quality.
  • 24-hour stable operation without overrun alarms.
Specifications
Power supply 220V /200W
Filling speed 200-2400bph
Filling accuracy ≦±1﹪
Air pressure 0.5-0.7Mpa
Air consumption 0.3-0.8m³/min
Bottle height 90-320mm
Bottle diameter ≥ 50mm
Filling heads 2/4/6/8 heads (customizable)
Capacity options 5-100ml 30-280ml 50-500ml 100-1000ml 500-2500ml 1000-5000ml
Dimensions 22000×1000×1850mm
You Might Also Be Interested In
  • Powder Filling Line
    Powder Filling Line

    Our powder filling and packaging line boasts highly accurate and efficient filling performance and applicability to a wide range of industries such as food, cosmetics, pharmaceuticals.

    Filling range: 10-5000g
    Filling speed: High speed: 30-55bpm
    Packing speed: 25-60bags/min

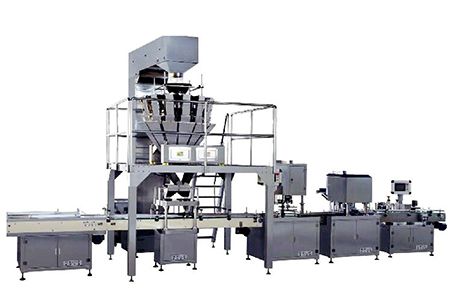

  • Granule Filling Line
