Powder Filling Line

Inline powder filling equipment and packaging machinery

Our powder filling and packaging line boasts highly accurate and efficient filling performance and applicability to a wide range of industries such as food, cosmetics, pharmaceuticals.

Powder Filling Line
  • Filling range:
    10-5000g
  • Filling speed:
    High speed: 30-55bpm
  • Packing speed:
    25-60bags/min
Request a Quote
Applications
  • Food: Filling and packaging of flour, powdered sugar, ground coffee, etc.
  • Cosmetics: Filling and packaging of foundation, eye shadow and loose powder, etc.
  • Pharmaceuticals: Filling and packaging of powder, dosage forms, etc.
  • Applications
  • Applications
  • Applications

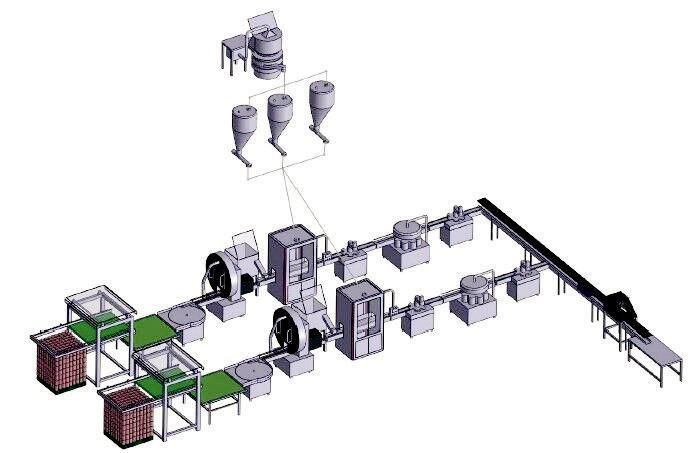

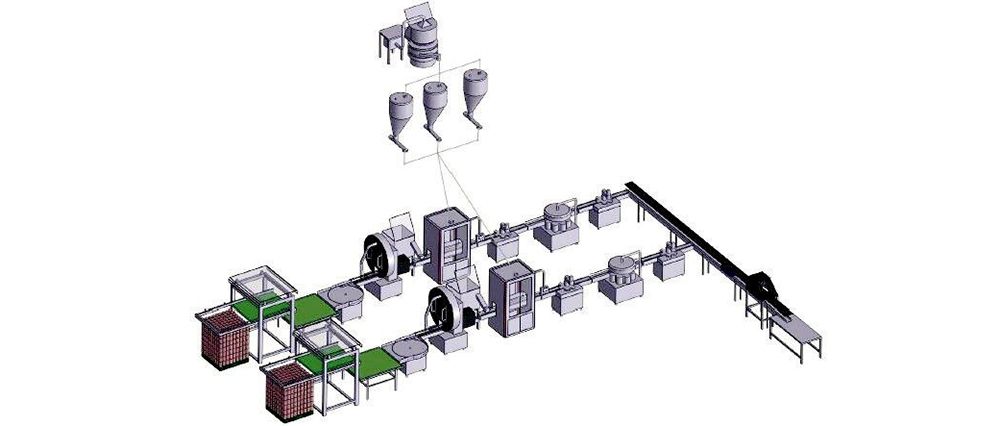

Configurations of Filling Line

The filling line can be configured flexibly according to the specific properties of the products and your parameter preferences.

Features
  • A stainless steel exterior, with a structure designed to meet the hygienic standards of food and pharmaceutical industries.
  • A transparent and reliable production process, aligned with Good Manufacturing Practices (GMP).
  • Three selectable modes for adjustable filling speeds, catering to various production demands.
Specifications
Metering device Auger filler Weight feedback & tracking device
Bag size Width: 80-200mm Width: 100-250mm
Length: 100-300mm Length: 100-350mm
Filling range 10-5000g 10-5000g
Filling speed Low speed: 5-10bpm
Medium speed: 15-25bpm
High speed: 30-55bpm
Packing accuracy ≤1%
Packing speed 25-60bags/min
Power supply Three phase 380/220V, 50-60Hz
Power 6kW
Air pressure 6-8kg/cm²
Air consumption 0.2m³/min
Machine weight 700kg 950kg
Dimensions 1300×1500×2600mm
You Might Also Be Interested In
  • Granule Filling Line

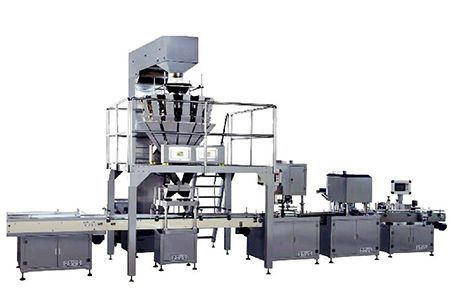

    Granule Filling Line
