Bottle Rinsing Machine
Our bottle rinsing machine is designed to meet the diverse needs of industries across the board. We offer options of side-grip bottle rinser, inverting bottle rinser, rotary drum bottle rinser and bottle air rinser to adapt to a wide range of glass bottle specifications. The primary function is to ensure that bottles are impeccably clean, free from dust, and fully compliant with the requirements of the production process. Perfect for applications in alcoholic beverages, soft drinks, soy sauce, and vinegar production, these bottle rinsing machines offer exceptional versatility and reliability. What's more, its easy-to-use nature and customizable speed settings ensure seamless integration into your production line.
-
Side-Grip Bottle RinserDetailsThe side-grip bottle rinser features a side grip that holds empty containers, rotate them, and thoroughly cleans them through high-pressure water or cleaning fluids. Its versatility extends to jars, plastic bottles, glass cans, and other containers with large dimensions, making it an ideal choice for a wide array of production needs. Boasting exceptional efficiency and easy operation, this machine is set to enhance your packaging process.
- 30-40bpm (depending on bottle size)
- Applicable bottle diameter: 38-100mm
- Applicable bottle height: 50-300mm
-
Inverting Bottle Rinsing MachineDetailsOur automatic inverting bottle rinsing machine is used to rinse PET and glass bottles. It can be integrated with filling and packaging lines of beverage, liquors, flavoring agents, etc. The bottle grippers transport bottles to the conveyor and invert them over to the rinsing area. Rinse heads then enter the bottles to cleanse them using water rinsing and air flushing, effectively removing contaminants and debris to prepare the bottles for entry into a filling machine.
- Production capacity: 1200-1500bpm (depending on bottle size)
- Dimensions (L×W×H): 2200×1000×1900mm
-

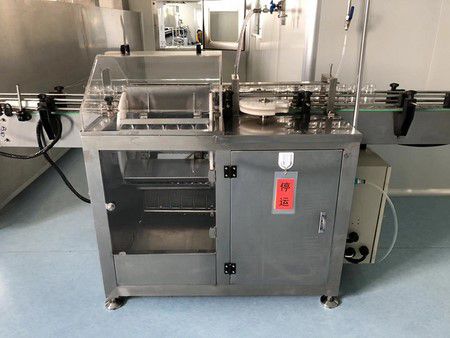

Rotary Drum Type Bottle RinserDetailsRotary drum type bottle rinser is used to remove debris from containers prior to the filling process. With its innovative design, the drum shaft efficiently rotates to place bottles inside the drum, where they undergo thorough washing via rinse heads or water streams, so as to meet the hygienic standards before the fill.
- Production capacity: 30-40bpm
- Water consumption: 0.3-0.5ton/hour
-

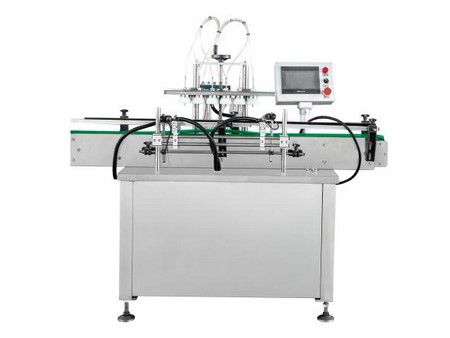

Bottle Air RinserDetailsSupported by advanced PLC technology, the bottle air rinser can effectively blow dusts and loose contaminants out of the bottles. When the rinse head senses the bottles, a blast of compressed air is blown into them to remove the contaminants.
- Production capacity: 25-30bpm (depending on bottle size)
- Bottle neck diameter: 15-50mm
What types of containers are bottle rinsing machines primarily applied to?
Bottle rinsing machines are primarily used in packaging and filling lines for the cleaning of a variety of containers including plastic bottles, glass bottles, metal cans, and other types of containers.
Which contaminants are targeted by bottle rinsing machines?
They are designed to eliminate contaminants such as dust, particles, and grease that may accumulate on bottles during transportation and handling processes.
Are bottle rinsing machines adaptable to various sizes and shapes of bottles?
Yes, the design flexibility of our bottle rinsing machines allows them to accommodate a wide array of bottle sizes and shapes, demonstrating high adaptability within the bottle filling line.
Can bottle rinsing machines be integrated into existing bottle filling lines?
Yes, we provide a diverse range of bottle rinsing machines that can be customized to suit your production line needs. Whether you opt for standard or custom bottle rinser, they are engineered for easy integration into your bottling line.
